Foam Trim on a Stucco House: Why It Fails From the Top Down

Drive through Kleinburg, Woodbridge or the newer streets of north Oakville and nearly every stucco house wears the same kit: a band at the second floor, a sill under every window, a crown over the front door, quoins stacked up the corners and a keystone in the middle of an arch. Almost all of it is foam. The calls I get about it are usually the same three: a sill has gone soft, a band has a crack running along its top, or a corner piece has come off in a chunk the size of a ladder foot. This is the plain guide to stucco foam trim repair: what those shapes are made of, why they fail at the top first, and when to repair a piece, replace it, or take it off the house.

What is foam trim on a stucco house made of?

A block of expanded polystyrene, cut to a profile with a hot wire, then coated with a base coat that has fibreglass mesh pressed into it, and finished to match the wall. It is glued on, sometimes with fasteners as well. That coating is only a few millimetres thick, and it is the only thing keeping water out of the foam.

Five parts make up every piece, and each one fails in its own way:

Foam core

Light and rot-proof, but it holds no screw and crushes under a ladder foot. Once its coating is open, it takes on water slowly and gives it back even more slowly.

Base coat and mesh

The real skin. The mesh has to wrap past every edge of the profile and lap across every joint between lengths. Sharp outside corners are where it is most often thin or missing.

Finish

Colour and texture. On a vertical face it sheds rain in seconds. On a flat top it does very little.

Adhesive

Holds the shape to the wall. On clean, sound stucco it is very strong. On a painted or chalky wall it is exactly as strong as the paint.

Sealant joint

The bead where the top of the piece meets the wall, and where a sill or crown meets the window frame. It lasts years, not decades.

Shapes arrive either pre-coated from a shop or as bare foam that the crew coats on the wall. Both can be done well. The site-coated ones are where I find the thinnest corners, because coating a sharp profile edge from a ladder is slow, fussy work, and it is the last thing done on a long day.

Why does foam trim fail at the top first?

Because the top is the only part of the piece that faces the sky. A wall sheds rain almost immediately; a flat top on a band or sill holds it, with dirt and leaves, long enough to soak into hairline cracks. In a GTA winter that water freezes, opens the cracks wider, and the sealant line against the wall sits underneath it all season.

A south-facing band warms up in the afternoon sun and freezes again at night, so it goes through far more freeze-thaw swings in a winter than the north side of the same house does. That is why the worst piece of trim on a house is so often the band across the front, facing the street and the sun.

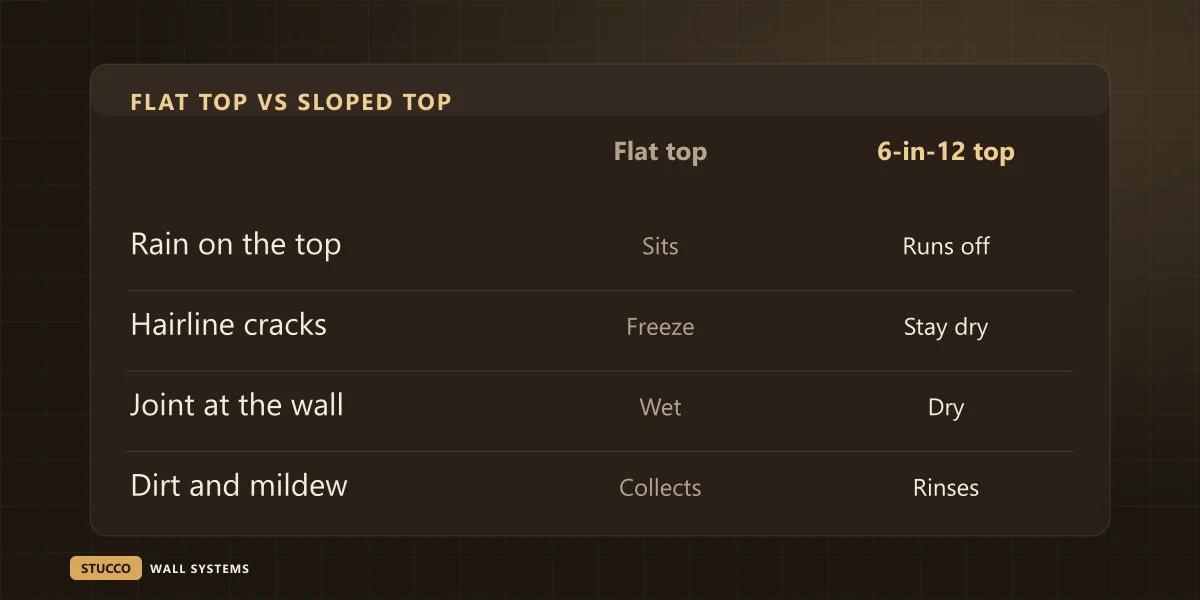

Most EIFS manufacturers’ installation details call for the top of any foam shape to slope at least 6 in 12, roughly 27 degrees, so water runs off instead of sitting there. Wider projections are meant to get a metal cap on top as well. A flat-topped band looks crisper from the sidewalk, which is why it gets cut that way, and that crisp look is what you pay for every spring.

The Building Code looks at this as a flashing question. The cladding section of Ontario’s Building Code, O. Reg. 332/12, Section 9.27, sets out where flashing goes on a wall, and its rules are built around horizontal junctions and the tops of openings. That is exactly where every band, sill and crown on a stucco house sits.

Which pieces of trim cause the most trouble?

Window sills first, then long horizontal bands, then crowns over windows and doors. Sills take the rain running off the glass above them plus their own share. Bands run the full width of the house, so one open joint feeds a long stretch of wall. Quoins and keystones mostly suffer knocks and crumbled corners rather than water.

The crown is the one I would watch most closely, because when it fails the water does not stay in the trim. It runs down behind the finish to the head of the window underneath, and then it looks like a window leak. If you are chasing a leak at the top of a window, read how stucco should meet windows and doors before anyone replaces the window. Foam shapes are also the first place woodpeckers and wasps go, for the same reason: soft core, thin skin. That is covered in woodpecker holes in stucco.

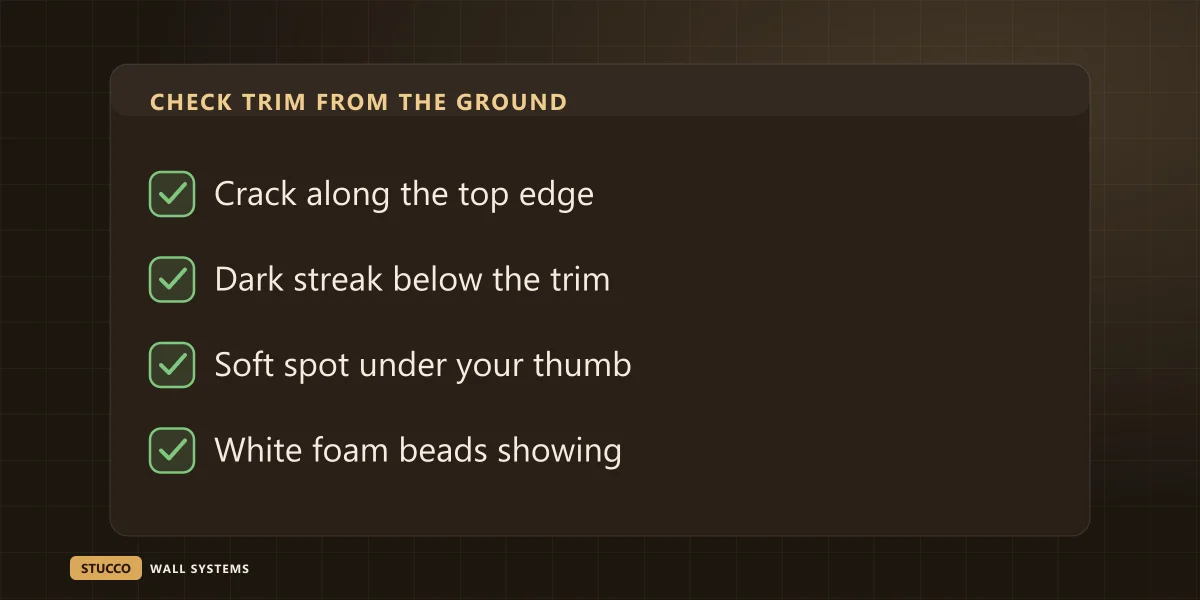

How can I tell if a piece of trim is failing?

Look at the top edge and directly below it. A hairline crack along the top, a dark streak or green line under the piece, white foam beads showing through the coating, a soft spot under your thumb, or a gap opening between the trim and the wall all mean water is reaching the foam or getting behind it.

1. Look the morning after a rain. Stand across the street. Dry trim is one even colour. A section that stays darker after the rest has dried is holding water, and that is the one to look at closely.
2. Check both ends of every sill. Water runs off a sill sideways as well as forward. Staining and cracking usually start at the ends, where the sill meets the wall.
3. Press the top of a sill from inside an open window. Firm is fine. If it gives, or you hear a faint crunch, the foam under the coating is wet or crushed. Do not do this from a ladder leaning on the trim itself.
4. Look for small white beads. If you can see little white balls like packing foam, the coating is gone and the foam is open to the weather.
5. Check the joint at the wall. If you could slide a business card into the gap between the top of the trim and the wall, the sealant has failed and water is going straight in behind the piece.

Should foam trim be repaired, replaced or removed?

Repair it when the foam is dry and the damage is only in the coating or the sealant. Replace the piece when the foam is wet, crushed or coming loose. Remove it when the shape adds nothing to the house and keeps leaking; a plain wall with a proper sill is easier to keep dry than a decorative band that was cut flat.

You will notice there is no price per foot of trim in that table, and that is on purpose. Trim is priced by the linear foot and by the profile, so a plain four-inch band and a deep stepped crown over a front door are completely different jobs. A per-foot number on a website would only make your real quote look wrong. The bands above are the same ones we use across the whole site.

When I replace a piece, the new one gets a sloped top, mesh that wraps past every edge and onto the wall, mesh lapped across every joint to the next length, and a real sealant joint wherever it meets a window frame. Wide crowns get a metal cap. The honest catch is colour: new finish on a fifteen-year-old wall rarely matches perfectly, so it often makes sense to refinish the whole band or all the trim on one elevation. I go through the options in why stucco patches show and how to match them.

Removing trim is a real option, and I suggest it more often than people expect from someone who installs the stuff. It has a catch too. The wall behind the trim has been shaded for years, so taking a band off leaves an outline that usually needs a new finish coat across that elevation. Price that in before you decide.

Can I fix foam trim myself?

You can re-seal a failed joint along the top of a sill or band: on a dry day, cut out the old bead, clean the joint, and run a good exterior sealant. Beyond that, a homemade coating over wet foam only locks the water in. Paint over a cracked sill does the same thing.

The classic $99 patch-and-pray fix is a smear of caulk over the crack on top of the sill, painted to match. It looks fine for one season. The foam underneath is still wet, and now it has a waterproof lid holding the water in. If the foam is soft, the piece needs to come off.

What to do before the freeze

October is the right month for this. Walk the house after the next rain, check the ends of every sill and the top of every band, and get any open sealant joints closed before the freeze-thaw season starts. One winter of water sitting in an open joint is often the difference between a re-seal and a new piece.

If you find more than a couple of problems, our stucco repair crew handles trim as part of the wall, so the water path gets fixed and not just the piece you can see. Building new, or replacing trim across a house? Our residential stucco work cuts every shape with a sloped top from the start. We work on a lot of trim-heavy houses across Vaughan, Woodbridge and Kleinburg, and you can see finished exteriors on our projects page. Or send us a photo of the piece and a second one from across the street, and we will tell you whether it needs a re-seal, a new piece, or nothing at all yet.
